#006 Pulleys with Vibrating Lever - 507 Mechanical Movements 3D Animation

Monday, Jan 19, 2026

Movement No. 6 presents a fascinating mechanism for converting a simple back-and-forth vibratory motion into a reciprocating rotary motion — transmitted through a belt and a semi-circular segment to a pair of pulleys below. The heart of the mechanism is a semi-circular segment, essentially a half-disk or curved rack, to which a lever is rigidly attached. When the lever is pushed and pulled back and forth in a vibratory oscillating motion, the semi-circular segment rocks correspondingly about its central pivot. A belt is fixed to and wrapped around the curved outer edge of this semi-circular segment, so that as the segment rocks in one direction, the belt is paid out on one side and taken up on the other — alternately pulling and releasing the pulleys below in a reciprocating fashion. The two lower pulleys are consequently driven in alternating directions of rotation — spinning clockwise, then counter-clockwise, then clockwise again — in perfect synchrony with each swing of the lever above. This mechanism elegantly bridges the worlds of linear oscillating input and rotary output, making it particularly useful in applications where a rocking or vibratory prime mover — such as a hand lever, a foot treadle, or a cam-driven rocker arm — needs to drive a rotating load. The semi-circular geometry of the segment ensures smooth, continuous belt engagement throughout the arc of the vibratory stroke, and the mechanism can be scaled easily to suit the amplitude and frequency requirements of different applications. This type of motion conversion is found historically in treadle-powered lathes, hand-operated sewing machines, and early reciprocating pumps.

@ Formline 3D

2 minute read

#005 Pulleys with Tightening Mechanism - 507 Mechanical Movements 3D Animation

Sunday, Jan 18, 2026

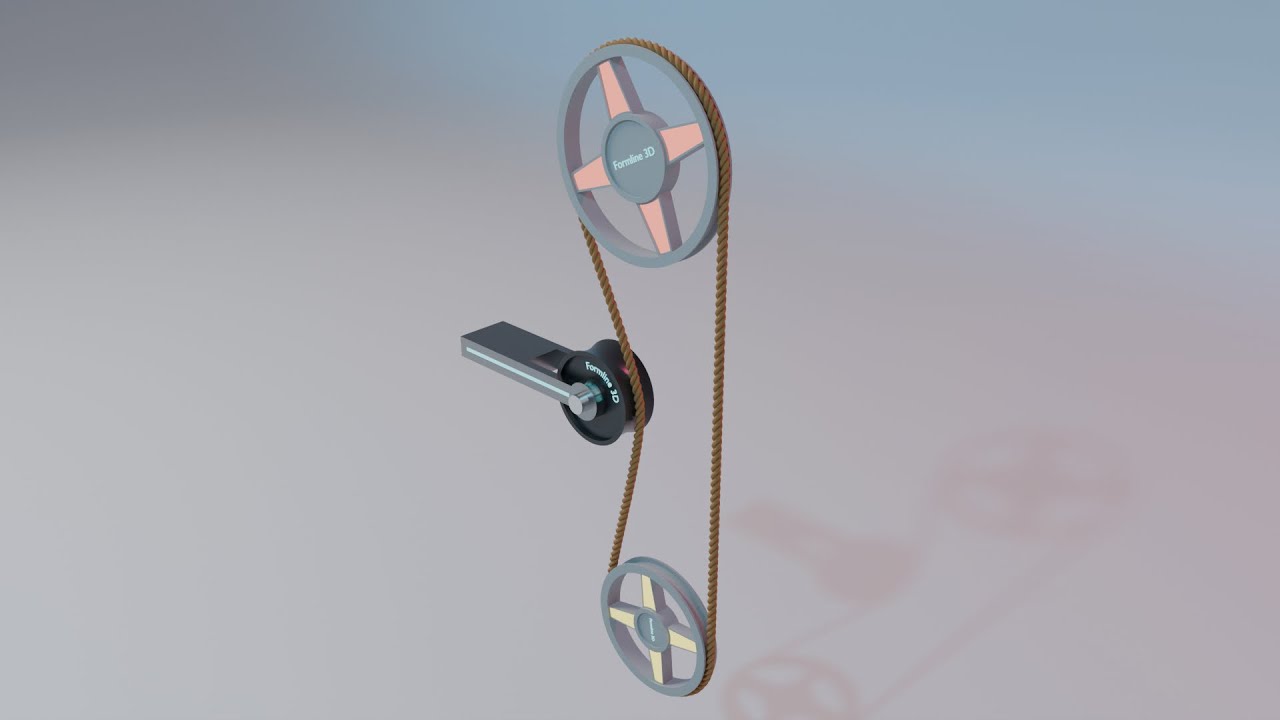

Movement No. 5 builds directly upon Movement No. 1 — the basic flat belt drive between two pulleys — by introducing one critically important addition: a movable tightening pulley, B, which acts as a belt clutch. In the basic configuration, a flat drive belt connects two larger pulleys on parallel shafts. However, the belt is intentionally made slightly slack — loose enough that when left untensioned, it slips freely over both pulleys without transmitting any rotational motion. This slack condition represents the disengaged or “neutral” state of the mechanism. The genius of the system lies in the tightening pulley B — a small idler pulley mounted on a movable arm or pivot. When pulley B is pressed inward against the slack belt, it takes up the excess slack, increasing the belt’s tension against both large pulleys and restoring sufficient friction for the belt to positively grip the driver pulley and transmit motion to the driven pulley. The mechanism is thereby engaged and power flows through the system. When pulley B is released and withdrawn, the belt returns to its slack condition and power transmission ceases immediately. This arrangement is one of the simplest and most reliable forms of belt clutch ever devised — it requires no complex interlocking components, produces no shock loads on engagement, and can be operated with minimal effort by pressing or releasing a lever connected to the tightening pulley arm. Henry T. Brown’s description captures this elegantly: the belt transmits motion when the pulley is pressed, and does not transmit when it is not. This fundamental mechanism is the direct precursor to the modern tensioner-clutch systems found in agricultural machinery, go-kart engines, garden equipment, and early industrial machine tools.

@ Formline 3D

2 minute read

#004 Crossed-Belt Right-Angle Drive - 507 Mechanical Movements 3D Animation

Saturday, Jan 17, 2026

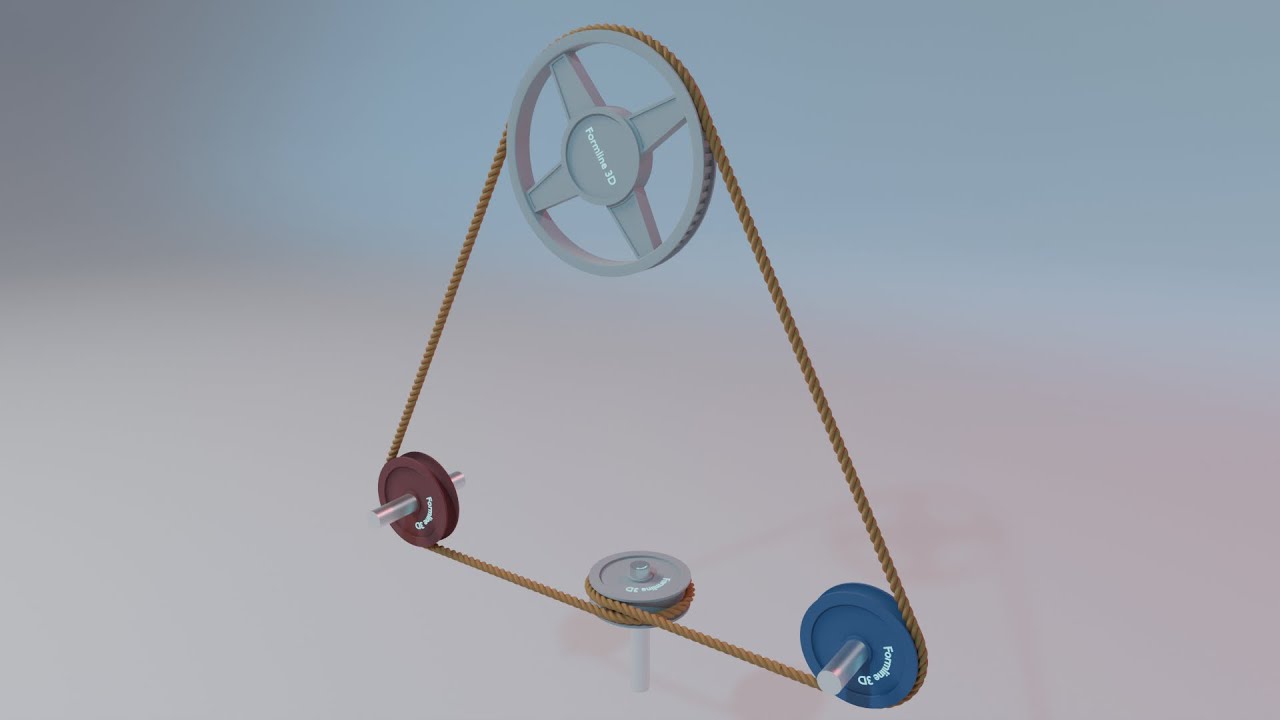

Movement No. 4 presents an elegant solution to a specific geometric challenge in belt transmission: how to transmit rotational motion between two shafts that are oriented at right angles to each other, but whose axes lie within the same plane. This distinguishes it from Movements No. 3 and No. 11, where the shafts are perpendicular and their axes lie in different planes — requiring the belt to twist out of plane as it transitions between the two pulleys. In Movement No. 4, because both shaft axes share the same plane, the belt can remain entirely within that plane throughout its path — but the two pulleys must be mounted at 90 degrees to each other, with one pulley’s axis perpendicular to the other’s within the common plane. Henry T. Brown presents two possible belt configurations for this arrangement: an open belt and a crossed belt. While an open belt can be used, the crossed belt is specifically recommended as the preferred solution because it provides a greater arc of contact — the angle over which the belt wraps around each pulley — thereby increasing the total friction force available for power transmission and reducing the likelihood of belt slippage under load. The crossing of the belt also naturally causes the driven pulley to rotate in the opposite direction to the driver, which may be advantageous or easily accommodated depending on the application. This mechanism provides a compact, gearless solution for changing the direction of a drive axis by 90 degrees within a single plane, and was widely used in mill machinery, agricultural equipment, and workshop tools where a simple direction change was needed without resorting to bevel gears or complex intermediate shafting.

@ Formline 3D

2 minute read

#003 Right-Angle Belt Drive - 507 Mechanical Movements 3D Animation

Saturday, Jan 17, 2026

Movement No. 3 presents a classic engineering solution for transmitting rotational motion between two shafts oriented at right angles to each other — where the shaft axes do not lie in the same plane — using a pair of guide pulleys and a split belt. The central challenge of transmitting power between two perpendicular shafts via a belt is that the belt must transition from one plane of rotation to a completely different plane, rotating 90 degrees between the two pulleys. Without guidance, a flat belt attempting this transition would twist unevenly, run off the pulleys, and fail to transmit power reliably. Movement No. 3 solves this problem with an ingenious but simple solution: the drive belt is split into two separate leaves — essentially two narrow belts running side by side — and two guide pulleys are positioned at the transition point, mounted side by side on a common axle, one for each leaf of the belt. Each leaf of the split belt wraps around its own dedicated guide pulley, which redirects it smoothly and independently through the required 90-degree transition. By splitting the belt and providing individual guidance for each half, the mechanism ensures that the belt transitions cleanly and evenly between the two perpendicular shaft planes without twisting or running unevenly. The two guide pulleys work together as a pair to collectively redirect the full drive force of the belt system around the right angle. This mechanism is a direct mechanical precursor to the quarter-turn belt arrangement seen in No. 11, which achieves the same result without any guide pulleys by exploiting belt geometry alone — making the comparison between No. 3 and No. 11 a particularly instructive study in engineering design trade-offs between simplicity and reliability.

@ Formline 3D

2 minute read

#002 Cross Belt Drive - 507 Mechanical Movements 3D Animation

Friday, Jan 16, 2026

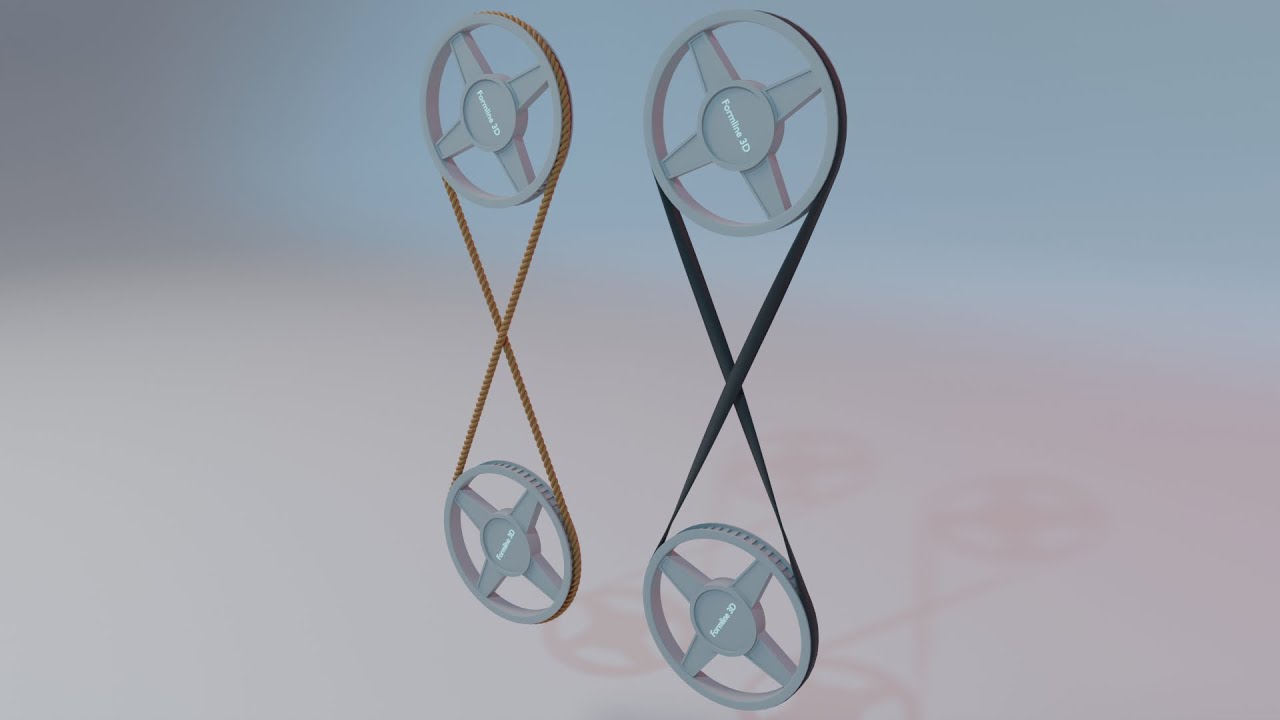

Movement No. 2 builds directly upon Movement No. 1 — the simple open belt drive — by introducing the crossed belt configuration and, in doing so, unlocking one of the most practically powerful features in classical belt transmission: the ability to reverse the direction of the driven shaft without stopping or reversing the driving motor. In its simplest form, replacing the open belt of No. 1 with a crossed belt — where the belt forms an X shape between the two pulleys — reverses the direction of rotation of the driven pulley relative to the driver. With an open belt, both pulleys rotate in the same direction; with a crossed belt, they rotate in opposite directions. But Movement No. 2 goes further, describing an elegant three-pulley reversing mechanism: three pulleys are mounted side by side on the driven shaft — the center pulley is fixed (keyed) to the shaft, while the two outer pulleys are loose (they spin freely on the shaft without driving it). Two belts are used simultaneously — one open belt and one crossed belt — each connecting the driver to one of the three driven-side pulleys. At any moment, one belt rides on the fixed center pulley (driving the shaft), while the other rides on a loose outer pulley (spinning freely, doing nothing). By shifting both belts simultaneously — moving the active belt from the center fast pulley to a loose pulley, while moving the idle belt from a loose pulley to the center fast pulley — the shaft direction is instantly reversed, all while the driving motor continues running at full speed without interruption. This elegant and reliable direction-reversing mechanism was widely used in 19th-century machine tools, lathes, milling machines, and early industrial equipment, and represents a foundational principle of mechanical power control that predates electrical motor reversing by many decades.

@ Formline 3D

2 minute read

#001 Open Belt Drive - 507 Mechanical Movements 3D Animation

Wednesday, Jan 14, 2026

Movement No. 1 is the very first entry in Henry T. Brown’s landmark 1868 reference work — and fittingly, it presents the most fundamental and universally important mechanism in the entire field of mechanical power transmission: the simple open belt and pulley drive. Two pulleys of equal or different diameters are mounted on separate parallel shafts, connected by a continuous flat belt that runs in a straight, uncrossed path between them — forming what is known as an open belt configuration. As the driver pulley rotates, friction between the belt and pulley surfaces causes the belt to move, which in turn drives the second pulley by the same frictional engagement on the other end. The defining characteristic of the open belt configuration, stated precisely by Henry T. Brown, is that both pulleys rotate in the same direction — if the driver turns clockwise, the driven pulley also turns clockwise. The speed ratio between the two pulleys is determined purely by the inverse ratio of their diameters: a driven pulley with half the diameter of the driver will rotate at twice the speed, while one with twice the diameter will rotate at half the speed. The torque ratio follows the inverse relationship. Power is transmitted entirely through friction between the belt and pulley surfaces — no teeth, no rigid connections, no direct contact between the shafts. This frictional nature provides a natural overload protection: under excessive load, the belt slips rather than breaking the machinery. The open belt and pulley is the ancestor of every belt-driven machine ever built — from the great line-shaft mills of the Industrial Revolution to modern serpentine belt systems in automobile engines, V-belt drives in HVAC equipment, and conveyor systems worldwide. It is the logical and historical starting point for the entire 507 Mechanical Movements collection.

@ Formline 3D

2 minute read
